AUDIO VU METER 9 LEDS

5 LED VU Meter kit is based on LB1409 IC from SANYO, which will indicates the volume level of the audio signal it senses

  • SUPPLY 12V DC @ 50mA
  • PR1 REF SET
  • PR2 AUDIO LEVEL SET

SCHEMATIC

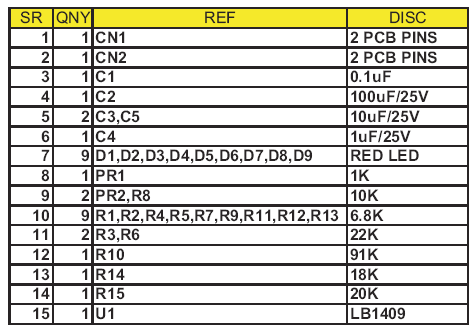

schematicPARTS

parts

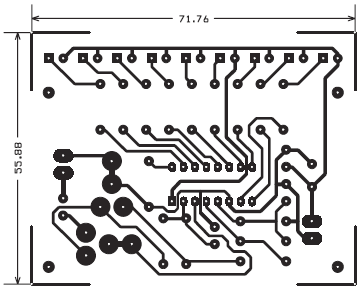

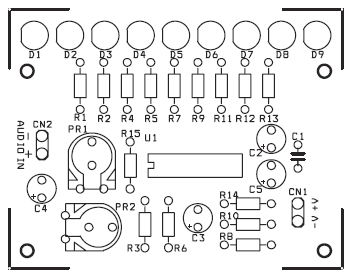

PCB

DOWNLOADS
